產品介紹

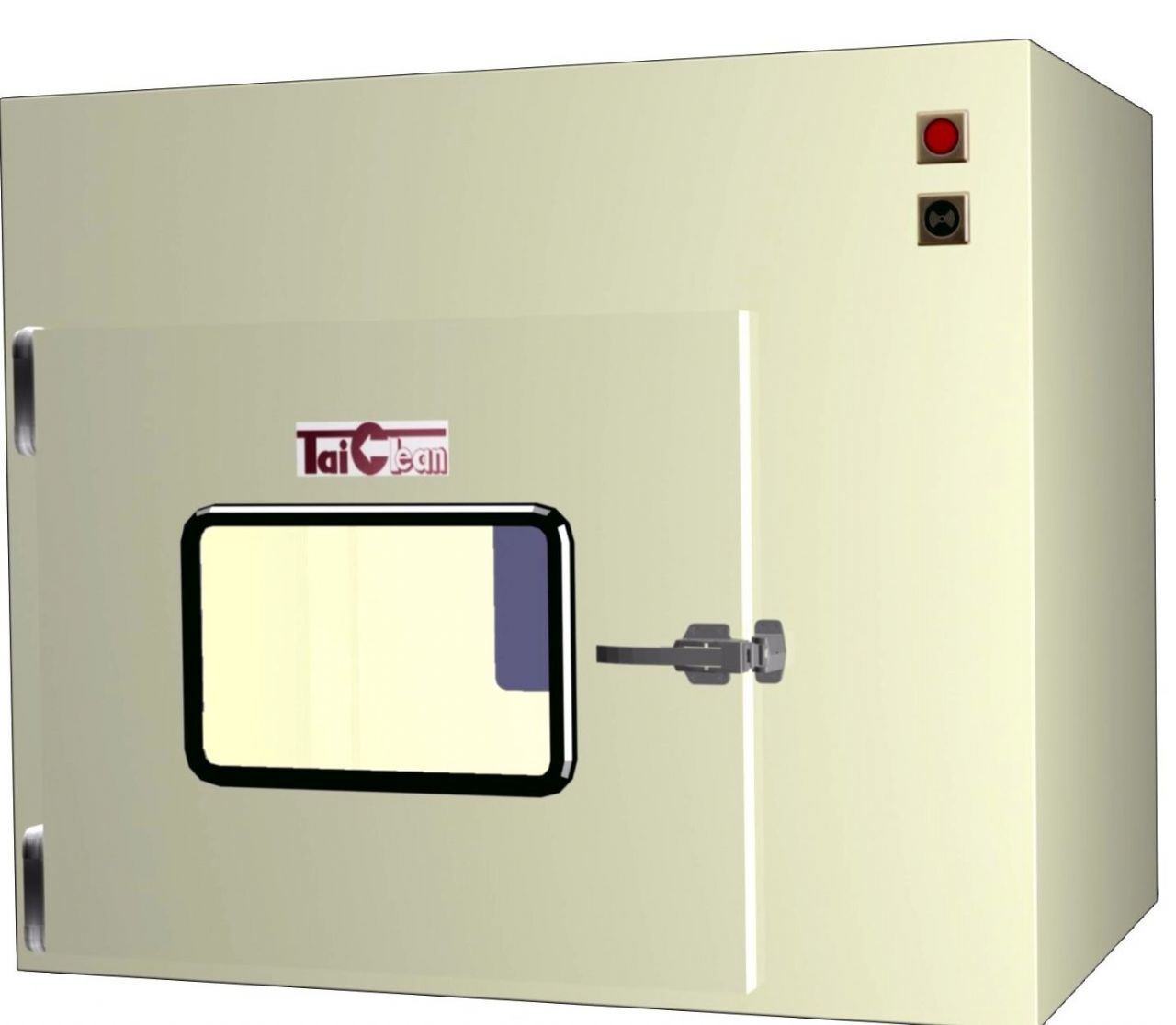

PB傳料箱
Pass Box-For Lighten Duty 潔淨室為了避免人員不必要的進出,影響環境品質及浪費工時,於室內外隔牆裝設傳料箱專提供小物料及文件傳送用 Pass Box equipment for easy transfer of materials to and from Clean Room and to eliminates unnecessary personnel entry and resultant contamination 標準裝備(standard Accessories)： 1. 機械式連鎖裝置 Mechanical Interlock 2. 蜂鳴指示燈 Buzzer with red light 選用(option)： 1. 對講機Call Phone 2. 殺菌燈UV Lamp |

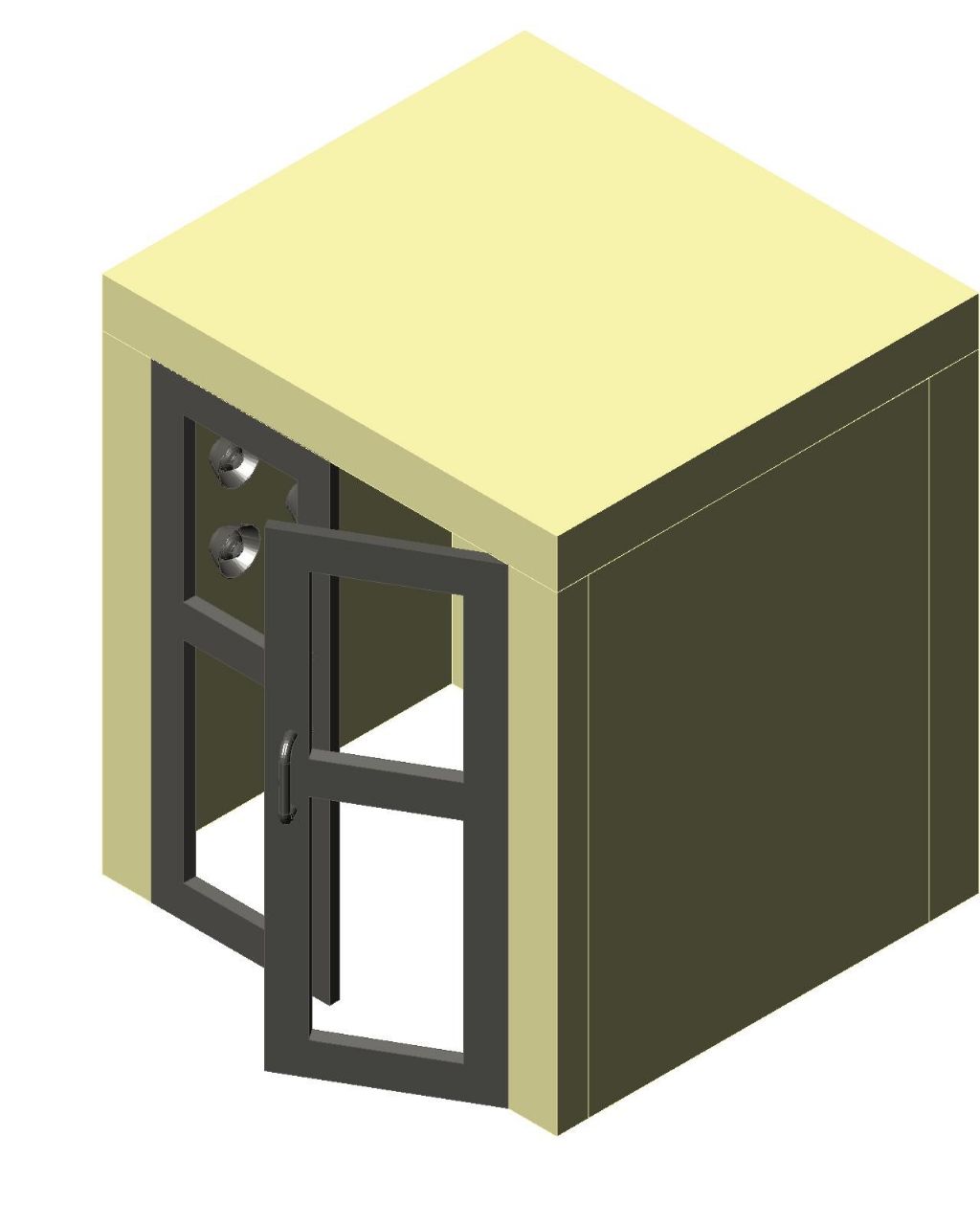

PR 落地傳料室Pass Room
For Have Duty(cart trans) 依照客戶需求尺寸訂作ALL CUSTOMIZED DESIGN |
工程系列 PB-2 /SPBW /SPBG /CPB
浴塵傳料系列 Shower with Interlock and exhaust system For Cleanliness Class1~1000 Cleanroom use Shower：HEPA FILTER: DOP 99.99% 0.3 micron Shower：FAN : 3/4HP 3phase 220V/380V 50/60HZ Shower：Nozzle’s Air Speed：30m/sec. Exhaust System : Quickly force the particles through an exhaust vent to the dirty side out of the pass box 可將高速浴塵後殘留之微塵，迅速由洩壓門強制排至箱外  |

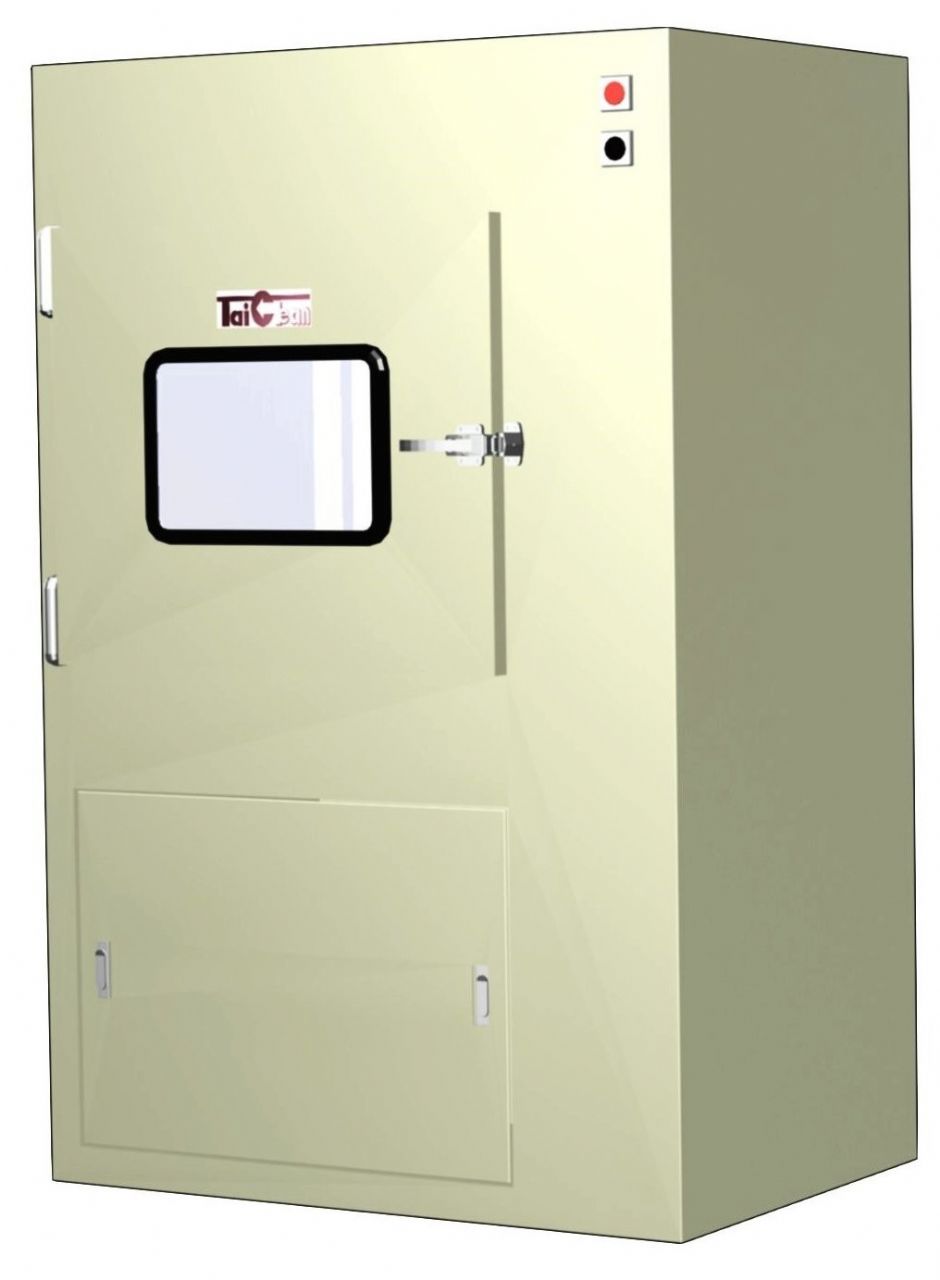

SPBW窗型浴塵傳料箱 - 浴塵式 Shower Pass Box—Window Type SPBG 落地浴塵傳料箱—浴塵式 Shower Pass Box—Grounding Type |
CPB 潔淨傳料箱 Clean Pass Box –層流式 HEPA FILTER：DOP 99.99% 0.3 micron ULPA：99.999%~99.9999% 0.1micron Low speed FAN : 1phase 220V/380V 50/60HZ Air Speed：0.4m~0.7m/sec. Nozzle：No  |
SPR落地浴塵傳料室Shower Pass Room浴塵式 For Have Duty(cart transfor) Full range of size meets nearly and application HEPA FILTER：DOP 99.99% 0.3 micron FAN : 3/4HP 3phase 220V/380V 50/60HZ Air Speed : 25m~30m/sec. Nozzle：SUS 304 Doors：Materials same as main body or others for larger size 依照客戶需求尺寸訂作ALL CUSTOMIZE DESIGN |
